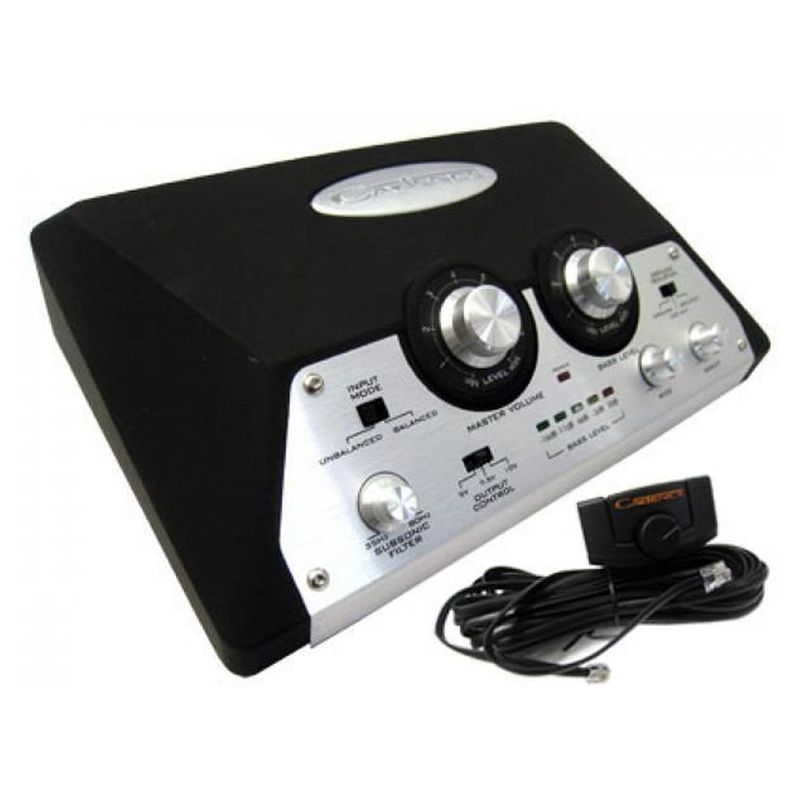

Cadence Επεξεργαστής σήματος CVL-BG
Specifications
- Digital Preamp Sound Processor
- PWM Fully Isolated Power Supply with Ground Isolation Control
- 10 Volt Line Driver
- Fully Adjustable Subsonic Filter
- Balanced and Unbalanced Input Selector
- Master Volume Control
- Bass Level control
- Bass Wide and Sweep Control
- LED Bass Level Peak Metering
- Includes Dashboard Remote Control
- THD&N: <0.02%
- Input Range for 10V Output: 0.2v – 10V
- Output Impedance: 100 ohm
- Input Impedance: 30 Kohm
- SNR&344; A-weighted: 83dB
- Combined Frequency Response: 10Hz-20KHz
- Separation: >60dB
- Channel Balance: <0.2dB
- Subsonic Filter Range: 38Hz-80Hz
- Subsonic Filter Slope: 24dB/slope
- Fuse: 0.5 amp
- Ground Isolation: Ground/220-ohm/isolated selectable
- Output Voltage: 5V / 7.5V / 10V selectable.
