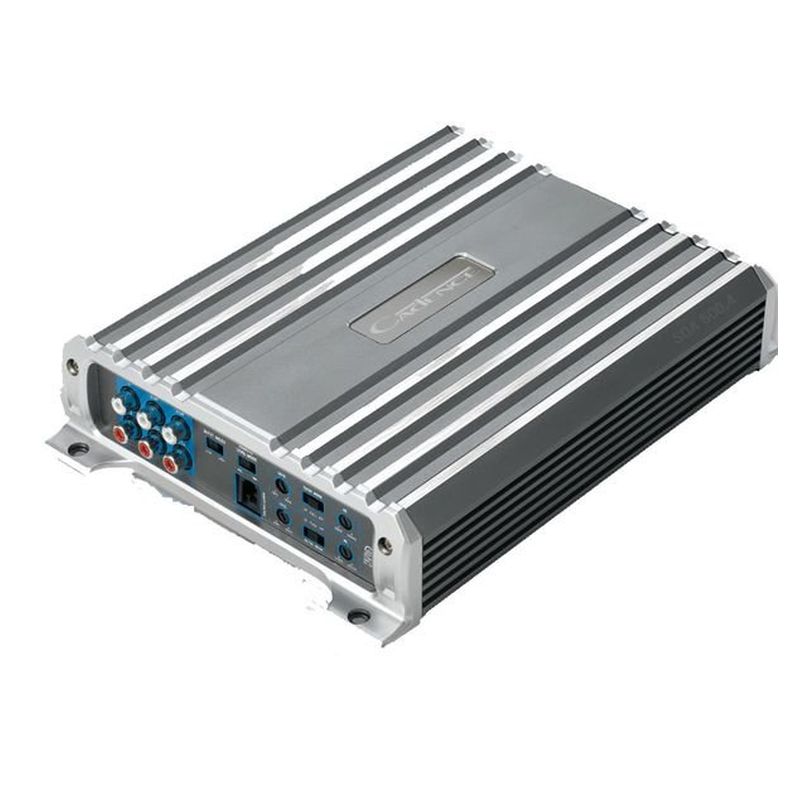

Cadence Marine Amplifier SQA-500.4
Specifications:
• 4 Ohm RMS Power: 80W x 4
• 2 Ohm RMS Power: 125W x 4
• 4 Ohm Bridged RMS Power: 250W x 2
• Minimum THD: <0.05%
• Frequency Response: 20Hz – 20 kHz
• S/N Ratio: >96dB
• Damping Factor: >200 @ 100Hz
• Channel Separation: >50dB
• Dimensions: 8,25” x 7,3” x 1,9”
Features:
• High Speed MOSFET Power Supply
• BiPolar Japanese Sanken output Devices
• Input Voltage: 200mV – 8V
• 12dB Crossover Circuitry
• Bass Boost Equalization
• High Level OEM Interface
• Lucite Encapsulated Angled Terminals
• Computer Optimized Heatsink Design
• 2-Channel Amps: 4-Ohm Bridgeable; Tri-Mode Capable
