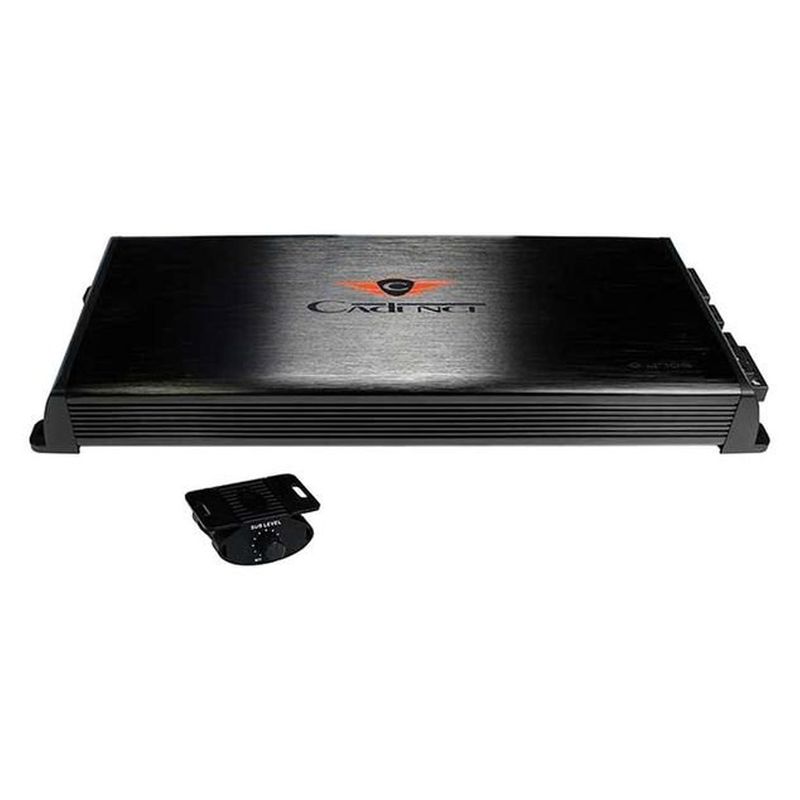

Cadence Q4705 5 Channel Amplifier Class A/B
Specifications
- RMS Power@4 ohm-14.4V: 60W x4 + 150W x1
- RMS Power@2ohm-14.4V: 60W x2 + 90W x2 + 230W x1
- BridgeRMS Power@4 ohm-14.4V: 60W x2 + 180W x1
- SubwooferChannel@2 ohm-14.4V: 230W
- Max Power: 1175 Watt
- Fuse Rating: 35A x2
- Dimensions (Lx W x H): 15.75″X7.1″X2.05″
- Unit Weight: 3.1 KG
Features
- High Efficiency, High Speed MOSFET Power
- Adjustable Bass Boost: 0-18dB
- Adjustable Low Pass Crossover: 50Hz-500Hz
- Adjustable High Pass Crossover: 50Hz-500Hz
- Nickel Plated Connections, Acrylic Molded Terminals
- 4-Way Protection Circuitry(Thermal,Short,DC,Overload)
- Extreme Convection Heat Dissipation via Computer Generated Heatsink Design
- Heavy-Duty Aluminum Alloy Heatsink
- Led Power and Protection Indicators
- Studio Grade Bi-Polar Output Stage Transistors for Smooth Audio Response
- Mute and Delay Soft Start System
- Tri-Mode Operation Capability
- 5/4/3/2Chanel Capability
- Nickel-Plated RCA Level Input
- Standard with Custom Molded End Caps
