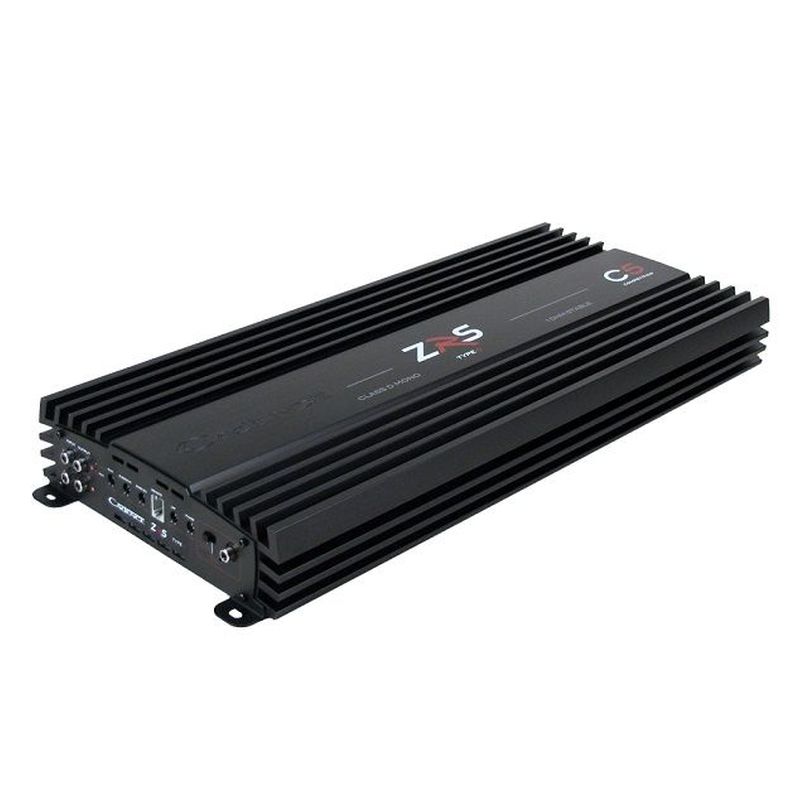

Class D Competition Mono Block Amplifier
Specifications
4 Ohm RMS Power: 1250 Watts x 1
2 Ohm RMS Power: 2500 Watts x 1
1 Ohm RMS Power: 4200 Watts x 1
PEAK Power: 10,000 Watts
Minimum THD: < 0.01%
Frequency Response: 10Hz - 500Hz
S/N Ratio: > 100dB
Damping Factor: >100 @ 100Hz
Channel Separation: mono
Input Voltage: 200mV – 9V
Fuse Rating: 200 amps x 1 (External)
Dimensions (L x W x H): 23″ x 11.6″ x 2.7″ (58.5 x 29.5 x 7)
Features
• High Speed MosFET Power Supply
• Bipolar Japanese Sanken Outputs
• 18V Capable Power Supply
• Copper Rail PCB Architecture
• 12-24dB Crossover Circuitry
• Bass Focus with Rumble Control
• Preamp RCA Output
• Adjustable Subsonic Filters
• Adjustable Phase Control
• Soft Start Mute and Delay
• Power & Diagnostic LED Indicators
• Twin Amp Bridgeable to 2x Power Output
• Master/ Slave Configuration
• Dashboard Bass Remote Control
