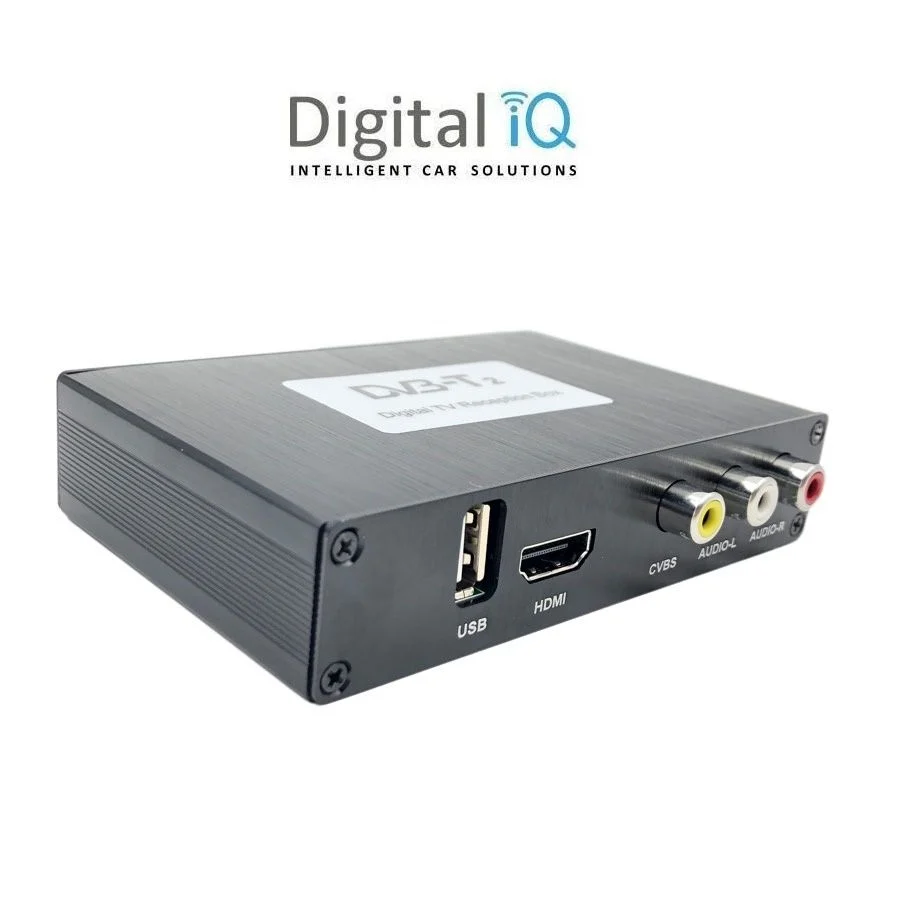

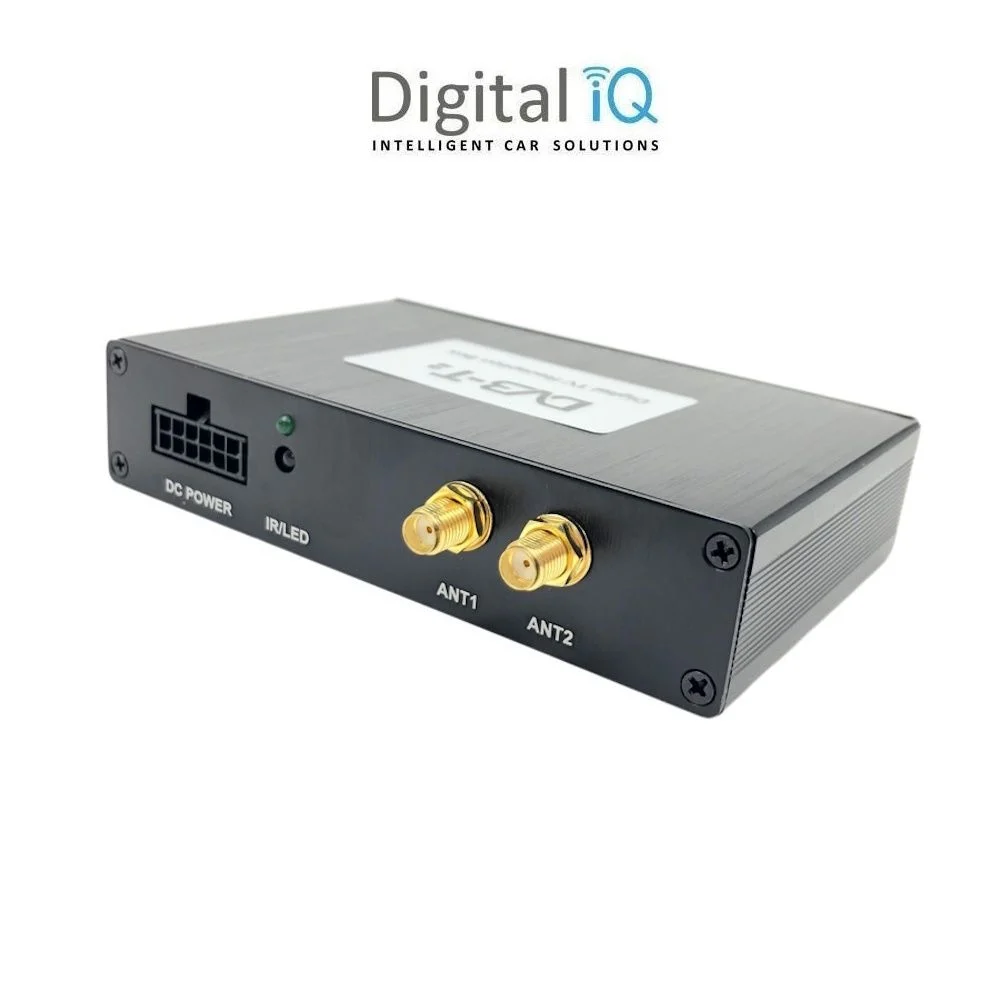

Διπλό ψηφιακό tuner MPEG2 – MPEG4 ( DVB T1-T2 ) , High Definition με USB είσοδο εγγραφής και αναπαραγωγής τραγουδιών & ταινιών & HDMΙ έξοδο
Key Specifications
- Input impedance : 75Ω
- Signal level : -80 to -10 dBm
- Video aspect ratio : 4:3 / 16:9
- Video output : 1 CVBS ( 3 CVBS optional), 1 HD (1080P)
- Video Decoder : MPEG-1/2/4，H.264，VC-1
- Audio output : L/R, digital HD – 1Vp-p, 47Kω adjustable with E volume
- Audio Decoder : MPEG-1/2，MP3，AC-3，AAC-LC 5.1，WMA， HE-AAC V1/V2 2.0，RA8-LBR
- IR extension jack : for IR extension box
- Operating temperature : -10 to 50°C
- Storage temperature : -10 to 65°C
- Power Supplier : 12 to 24 V DC ± 10%
- Dimension : 138.2*86.2*21.8mm
Features :
- Compliant with DVB-T MPEG2/SD/HD and H.264 SD standards
- 2 Antennas with 22db power
- With DiBcom 9090M high-performance NIM chips with diversity structure
- Speed move 230kph (SD) minimum ( at 8k, 64 QAM, CR2/3.GI1/847 MHz)
- Provide antenna power supplier function for pair use with mobile active antenna
- Stores over 500 TV and radio programs, favorite channels list editing
- Support PAL/NTSC video output 3 sets of video output for tourist bus and van to install with three monitors
- Fast scan for high-speed driving and cross different area
- Wide DC power input from 12 to 24V DC
