Περιγραφή

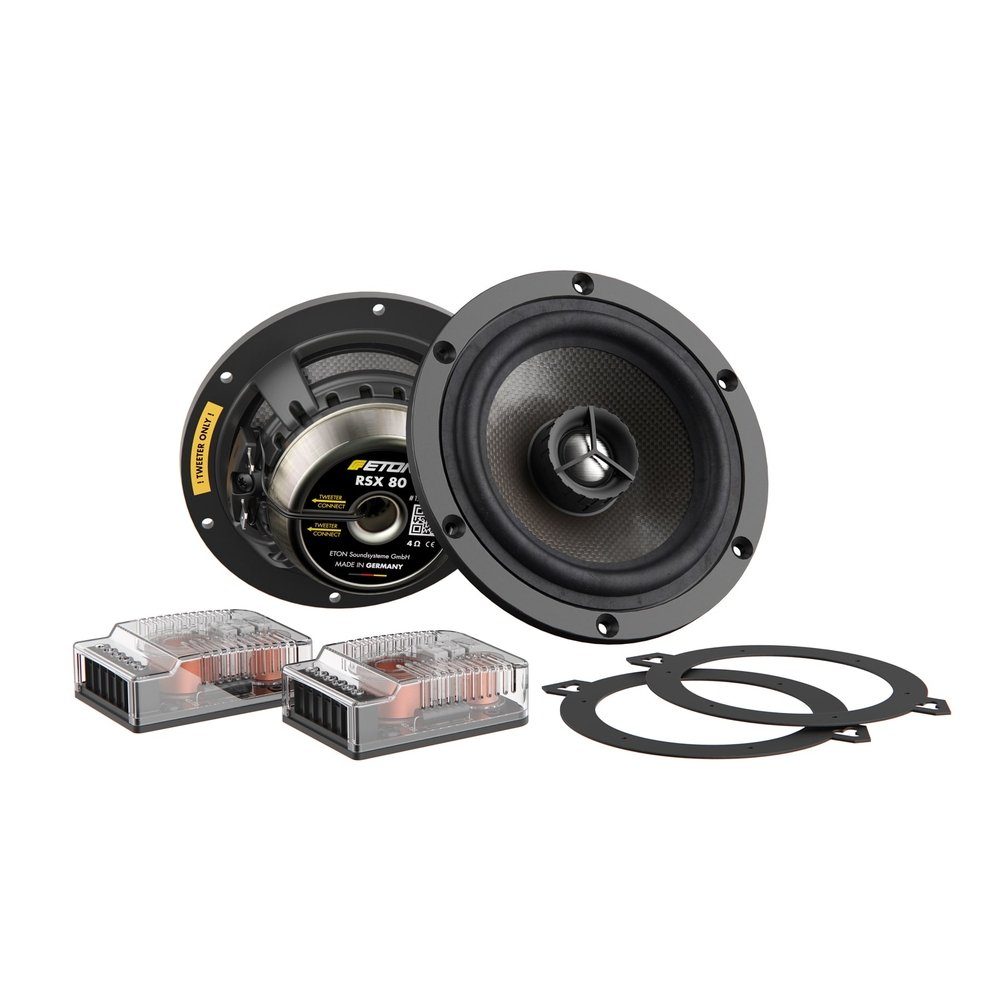

Eton RSX 80 3″ 2 Way (80mm) Ομοαξονικό

Woofer / midrange 80 mm
Tweeter 15 mm
Impedance 4 ohms
Nominal / music load capacity 50/80 W.
Characteristic sound pressure 87 dB
outer diameter 80 mm
Cutout diameter 77 mm
Installation depth 33.9 mm

Nominal impedance  4 Ohm
Resonance freq. 1 W  116 Hz
Resonance freq. 130 Hz
Mechanical Q QMS 4.74
Electrical Q QES 0.71
Total Q QT 0.60
Voice coil diameter 25 mm
Voice coil former Aluminium
Voice Coil length 7 mm
Lagen Voice Coil layers 2
Force factor BL x l 3.30 Tm
Mass of speaker 0.33 kg
Characteristic sound 87 dB SPL
DIN size 80 mm
Mounting diameter ø 77 mm
Mounting depth 33.9 mm
Basket material Aluminium
Cone material Carbon Rohacell
Tweeter, integrated ø 15 / 0,6 mm /
