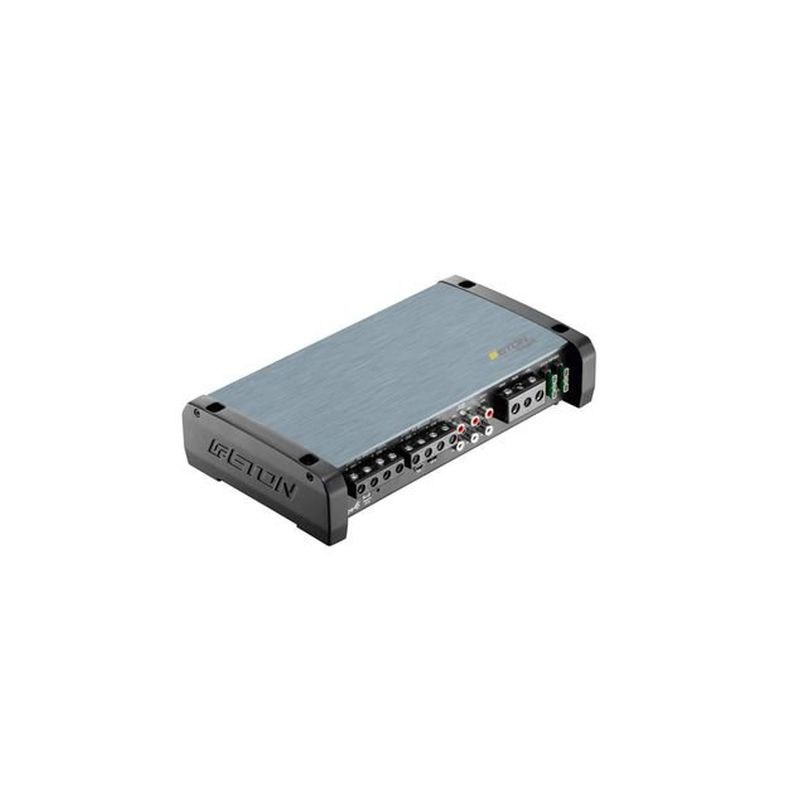

Eton STAGE 4 4Channel Amplifier With Integrated 6 Channel DSP
Specifications
4 Ohm 105W x 4 @ 1.0% THD
2 Ohm 160W x 4 @ 1.0% THD
4 Ohm Bridged 320W x 2 @ 1.0% THD
Signal to noise ratio @ 1W/4 Ohms : > -88 dBA
Efficiency at full power (4 Ohms) : 83.4%
Input sensitivity : 200mV bis 6V
Crossover range and slope : DSP controlled between 12 – 48 dB/oct and 20Hz – 20kHz
DSP controlled output for further amplifer : Yes/ 1 No
Input sum mixer : Yes
Suitable for vehicles with start/stop operation (8,5 V – 15,8 V) : Yes
Auto sense on : Yes/ DC and AC
Remote level control : Yes/ wired
Fuse : 2x 30A
