Pure Audio Perfection

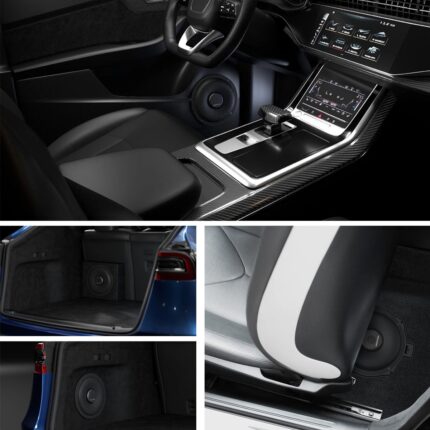

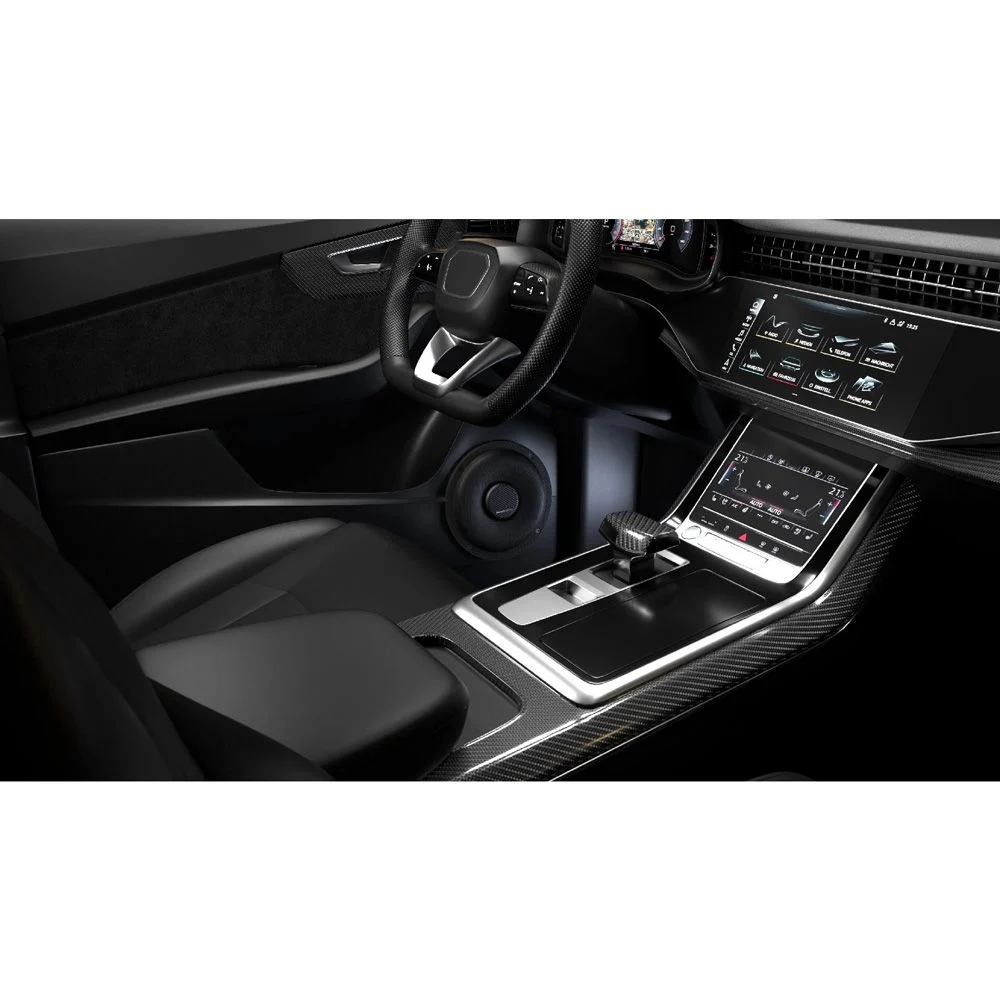

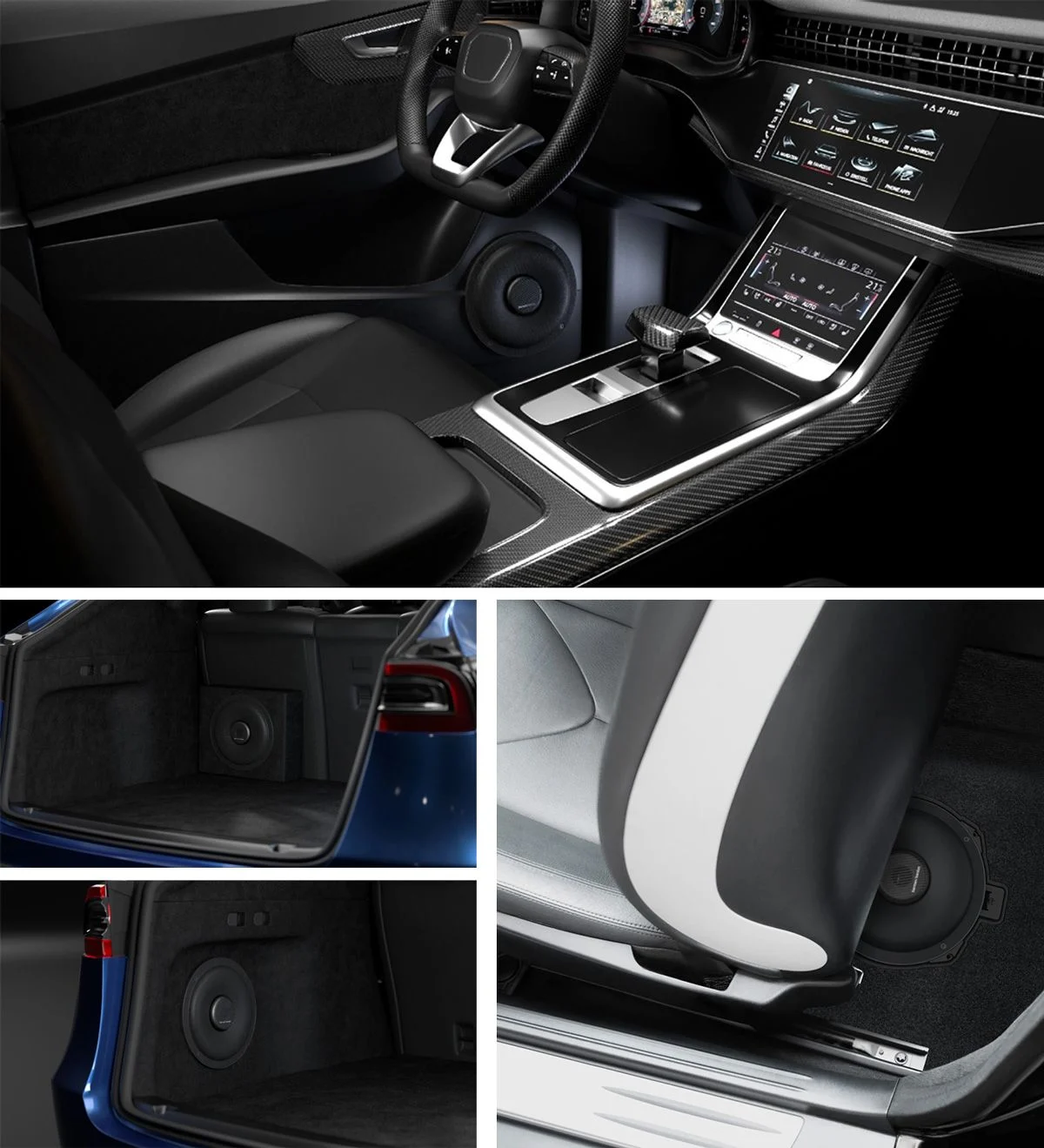

The Harman Kardon Flow 80 Subwoofer is the company’s first 8-slim subwoofer that can be used to replace the under-seat woofers of a BMW, as well as some Audi and Porsche models, for an enhanced bass response. “The technical components are combined harmoniously with the design elements and optimised to achieve a good sound experience,” was the jury’s verdict. The speaker grille is adorned with the distinctive line pattern borrowed from the slash in the “Harman/Kardon” brand logo. The covering keeps out dirt and debris. The voice coil on the back is protected by a bumper, while the slots characteristic of the Harman Kardon design provide for venting.
General Specifications
- Subwoofer: 8” Polypropylene Driver
- Power Handling: 125W RMS, 375W peak
- Sensitivity (1m/1w): 85dB
- Frequency Response (-6dB): 45Hz – 1kHz
- Nominal Impedance: 4 ohms
- Voice Coil Diameter: 2″ (50mm)
- Mounting Depth: 1-11/16” (43mm)
- Cutout Hole: 7-3/16” (182.2mm)
Features and Benefits
Inverted Acoustic Structure
Flow 80 utilizes an inverted space saving acoustic structure to achieve maximum excursion in shallow mount applications, while still reproducing powerful and
accurate low frequencies.
Neodymium Magnetic Motor
Neodymium magnets deliver up to 20 times the magnetic field per unit volume compared to Ferrite magnet to maximize performance while minimizing bulk and weight.
2″ (50mm) Voice Coil Wound on TIL (Glass Fiber) Former
Flow 80 is engineered with a 2″ voice coil with a high temperature resistant TIL (Glass Fiber) former for exceptional power dissipation and stability.
BMW-specific Chassis with Plug-and-play Connector is Included

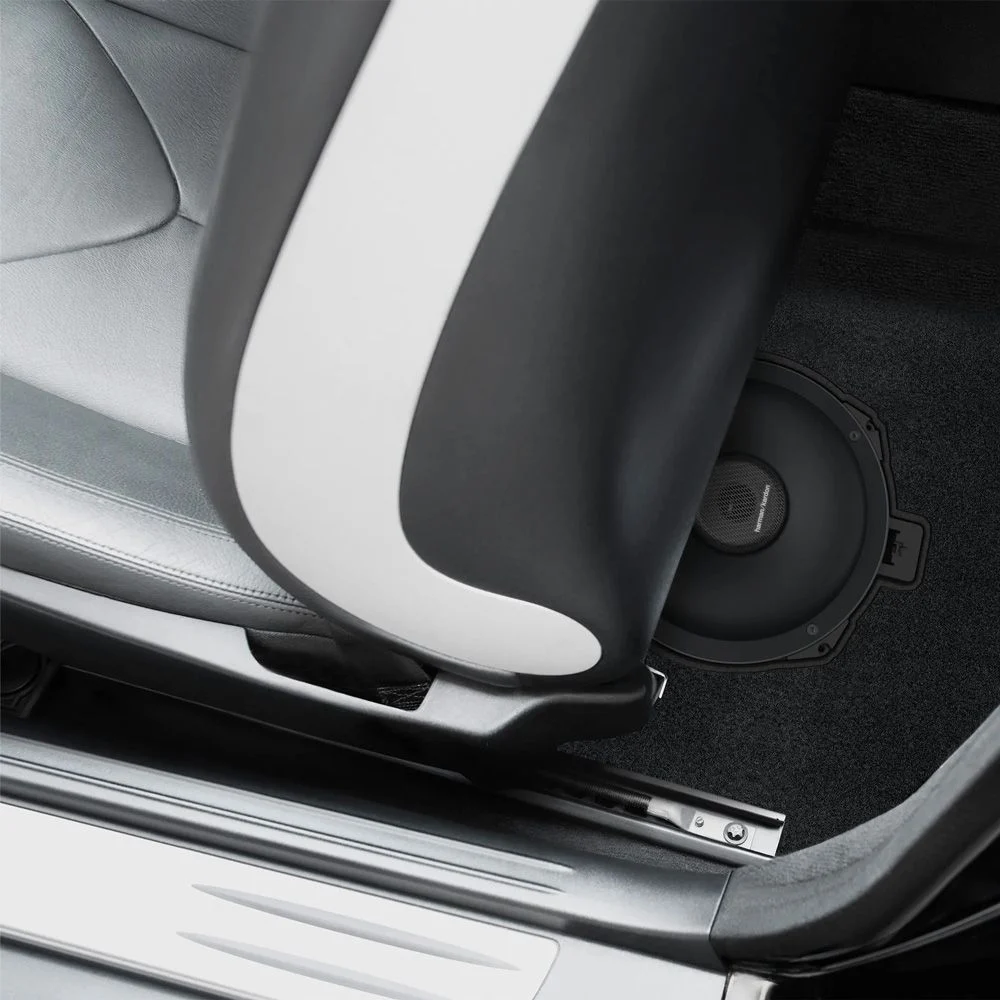

Flow 80 is supplied with a BMW-specific chassis and plug-and-play connector, which allows a “direct replacement” and makes for quick and easy installation of the select BMW models underneath the front seats.
Harman/Kardon’s Clean Aesthetic Design
Flow 80 keeps with Harman/Kardon’s clean aesthetic, the silhouette of the speaker is a simple circle. The fabric-wrapped grill, reminiscent of other Harman/Kardon speakers, protects the cone from fallen debris under the seat.
The front magnet creates the illusion of pushing the cloth grill into the speaker. The magnet’s metal grill uses the iconic Harman/Kardon 60-degree slash pattern, based on the “/” in Harman/Kardon, which provides venting for peak performance.
