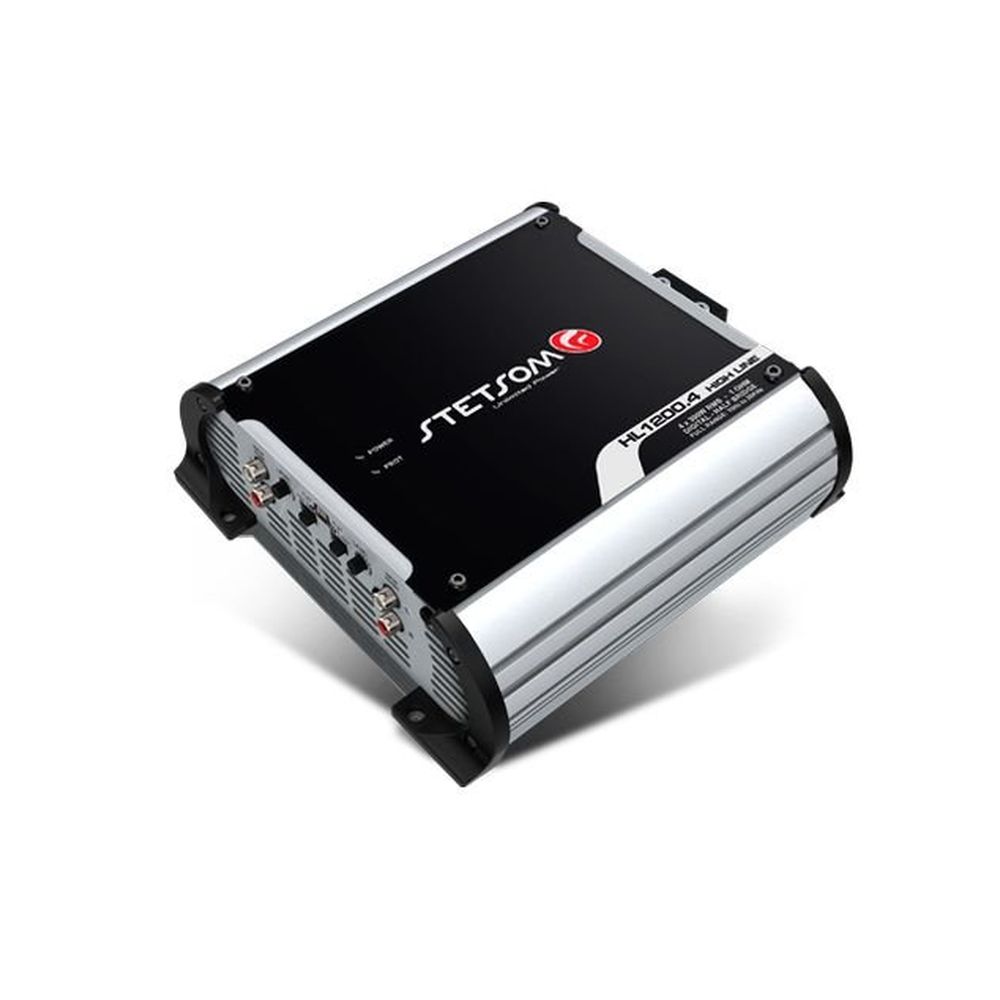

High Line HL 1200.4 – 1 Ohms
| FEATURES | HL 1200.4 – 1 OHM |
|---|---|
| Number of Channels | 4 |
| RMS Power at 1 Ohm 12.6V | 4 x 300W RMS |
| RMS Power at 2 Ohm 12.6V | 4 x 200W RMS |
| RMS Power at 1 Ohm 13.8V | 4 x 350W RMS |
| RMS Power at 2 Ohm 13.8V | 4 x 250W RMS |
| Power @ 12.6V Bridge 2 Ohms | 2 x 600W RMS |
| Power @ 13.8V Bridge 2 Ohms | 2 x 700W RMS |
| Supply Voltage | 9 ~15V |
| Frequency Response | 10Hz ~ 26 KHz |
| Crossover Low Pass | 90 Hz |
| Crossover High Pass | 90 Hz |
| Signal to Noise | > 90 dB |
| Harmonic Distortion | < 0,9 % THD |
| Input Sensitivity | 0,2 V |
| Input Impedance | 14K Ohms |
| Impedance Output | 1 OHM |
| Consumption with Signal Musical | 57 A |
| Consumption with Signal Bass | 114 A |
| Dimensions (H x W x D) mm | 66 x 206 x 216 mm |
| Weight Kg | 1,94 Kg |
